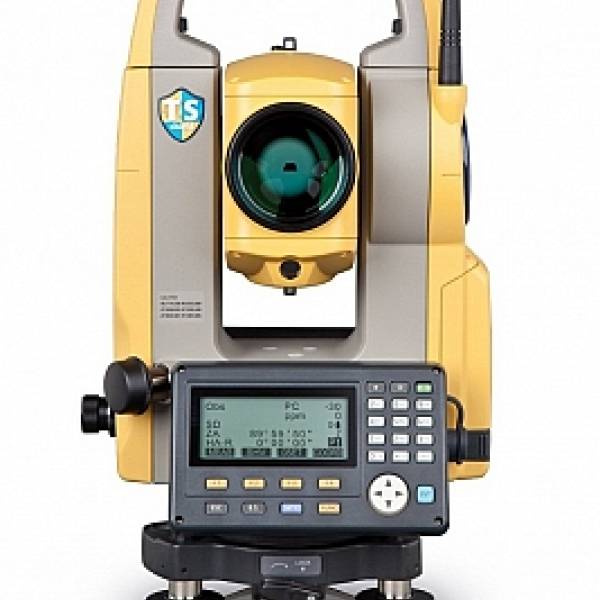

Máy toàn đạc điện tử Topcon ES 103

Đánh giá sản phẩm
4.5/5
94 Lượt xem
18 Lượt mua
Giá bán: Liên Hệ

Số lượng đặt hàng tối thiểu (MOD) 0

Thời gian giao hàng dự kiến tương tác trực tiếp nhà cung cấp

Hỗ trợ người bán:
✔ Giao dịch an toàn
Thanh toán:
Đổi trả và bảo hành:

CÔNG TY CP XÂY DỰNG - ĐO ĐẠC TRƯỜNG SƠN

Công ty thương mại

8 YRS

Địa chỉ: 2Bis Trường Sơn, P.2 , Q. Tân Bình, Tp HCM

Gợi ý cho bạn

Có thể bạn quan tâm

Thông tin tổng quan

Thông số sản phẩm

Thương hiệu:
Model Number:
Máy toàn đạc điện tử Topcon ES

Mô tả chi tiết

Specifications for the Topcon ES 103
General
Weight12.3 lbs (5.6 kg)
Dimensions7.5 in x 7.5 in x 13.7 in (19.1 cm x 19 cm x 34.8 cm)
Warranty2-year
Protection ClassIP66 (dust proof and powerful water jets and heavy seas resistant)
Internal Memory10,000 points
Guide LightGreen and red LED; Operating time: 1.3 to 150 m (4.3 to 490 ft)
Angle Measurement
Minimum Reading0.5-second/1-second
Accuracy3-second
Distance Measurement
Unit of Measure (distance display)m/ft
EDM Accuracy (Precision)±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism
Minimum Reading500 m (1,640 ft)
Tilt Sensor/Compensator
Range± 6
TypeLiquid
MethodElectronic Automatic
Battery/Power
Power SourceRechargeable Li-ion battery
Battery Life36 hours
Battery Life Alertyes
Telescope
Length of Tube6.7 in (17.1 cm)
ImageErect
Diameter of Objective Lens (Aperture)1.9 in (48mm) EDM
Magnification30x
Field of View1 degree 30 arcmin
Resolving Power2.5 arcsec
Minimum Focus Distance1.3 m (4.3 ft)
Reticle Illumination5 brightness levels
Reflectorlessyes
Display and Keypad
TypeBlack and white LCD
SidesDual
KeysAlphanumeric
Backlightyes
Temperature
Operating-4Fº~140ºF (-20ºC~60ºC)
Applications
Surveying and Constructionyes
Mapping and GIS (geographic information systems)yes
Utilitiesyes
Environment Studiesyes
Geomarkingyes
Archaeologyyes
Accident Reconstructionyes
Measurement Range (under fair weather conditions)
Single Prism4,000 m (13,123 ft)
Triple Prism5,000 m (16,404 ft)
No Prism500 m (1,640 ft)
Mini Prism500 m (1,640 ft)
Reflector Sheet500 m (1,640 ft)
Functions
Coordinate Measurement Pointyes
Angle and Distance Stake Outyes
Stake Out Lineyes
Offsetsyes
Missing Lineyes
Remote Elevationyes
Resectionyes
Area Calculationyes
Measurement Time
Fine0.9-second
Rapid0.7-second
Tracking0.3-second
Laser Plummet
Accuracy±1.0 mm/1.3 m
Class2
Wavelength635 nm
Interface
BluetoothClass 1 LongLink technology
USBType A and mini B
Pin PortRS-232C
